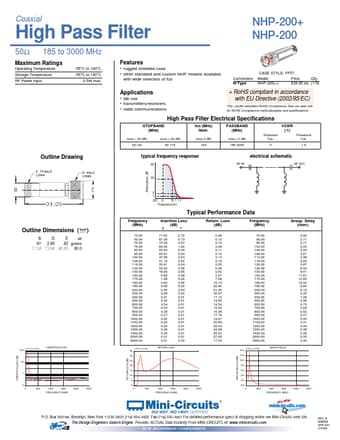

NHP-200, NHP-200_Mini High Pass Filter

NHP-200 Description

www.DataSheet.co.kr Coaxial High Pass Filter 50Ω 185 to 3000 MHz .

NHP-200 Features

* -55°C to 100°C -55°C to 100°C 0.5W max. NHP-200+ NHP-200 Maximum Ratings Operating Temperature Storage Temperature RF Power Input
* rugged shielded case
* other standard and custom NHP models available with wide selection of fco Connectors N-Type CASE STYLE: FF57 Model Price Qty

NHP-200 Applications

* lab use
* transmitters/receivers
* radio communications + RoHS compliant in accordance with EU Directive (2002/95/EC) The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications. High Pass Filter Electrical Specifications STOP

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NHP-200, NHP-200_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
NHP-200, NHP-200_Mini
Manufacturer
Mini-Circuits
File Size
137.10 KB
Datasheet
NHP-200_Mini-Circuits.pdf
Description
High Pass Filter
Note
This datasheet PDF includes multiple part numbers: NHP-200, NHP-200_Mini.
Please refer to the document for exact specifications by model.
