QCC-20, QCC-20_Mini Surface Mount Power Splitter/Combiner 2 Way-90 50 1200 to 2200 MHz

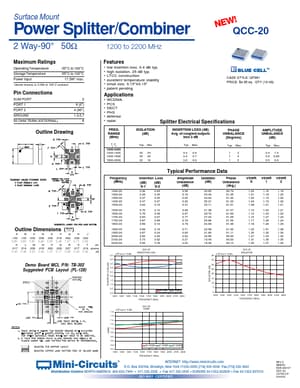

Surface Mount Power Splitter/Combiner 2 Way-90° 50Ω Maximum Ratings Operating Temperature Storage Temperature Power Input -55°C to 100°C -55°C to 100.

QCC-20_Mini-Circuits.pdf

QCC-20 Datasheet Preview — This datasheet PDF includes multiple part numbers: QCC-20, QCC-20_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

QCC-20, QCC-20_Mini

Manufacturer:

Mini-Circuits

File Size:

112.13 KB

Description:

Surface Mount Power Splitter/Combiner 2 Way-90 50 1200 to 2200 MHz

Note:

This datasheet PDF includes multiple part numbers: QCC-20, QCC-20_Mini.
Please refer to the document for exact specifications by model.

Features

* low insertion loss, 0.4 dB typ. high isolation, 25 dB typ. LTCC construction excellent temperature stability small size, 0.15"X0.15" patent pending WCDMA PCS DECT PHS defense radar

Applications

* Splitter Electrical Specifications ISOLATION (dB) INSERTION LOSS (dB) Avg. of coupled outputs less 3 dB Typ. Max. 0.4 0.4 0.6 0.6 0.7 0.9 Outline Drawing PHASE UNBALANCE (Degrees) Typ. Max. 1 1 1 3 3 5 AMPLITUDE UNBALANCE (dB) Typ. Max. 0.4 0.5 0.5 1.0 0.85 0.9 Typ. Min. 32 35 23 24 20 16 Typi
