QCS-152+ Power Splitter

2 Way-90° Power Splitter 50Ω 820 to 1600 MHz The Big Deal High Power handling (15W) Low Unbalance, 0.5 dB & 4 deg. typ. Industry leading combination of size/bandwidth QCS-152+ CASE STYLE: GE0805C-1 Product Overview Mini-Circuits new 90° Power Splitter, model: QCS-152+, offers an industry leading combination of operating bandwidth and size; supporting nearly an octave band in a miniature EIA-0805 form factor. The outstanding phase and amplitude unbalance make this c.

QCS-152+ Features

* Feature Small Size Advantages Offered in the EIA-0805 package size, the QCS-152+ offers an industry leading combination of size, bandwidth and frequency. The small footprint (2.0mm x1.25mm) allows for reduced parasitics in systems with improved performance and simplified layout. Supporting 4 deg.

QCS-152+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: QCS-152+, QCS-152+-Mini. Please refer to the document for exact specifications by model.

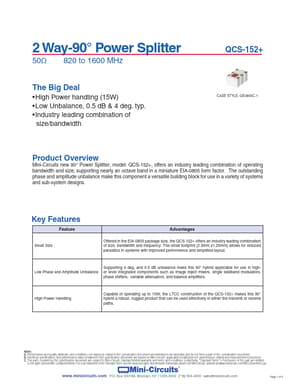

QCS-152+ Datasheet Preview Page 2 QCS-152+ Datasheet Preview Page 3

Datasheet Details

Part number:

QCS-152+, QCS-152+-Mini

Manufacturer:

Mini-Circuits

File Size:

296.24 KB

Description:

Power splitter.

Note:

This datasheet PDF includes multiple part numbers: QCS-152+, QCS-152+-Mini.
Please refer to the document for exact specifications by model.
