SALF-146, SAL Low Pass Filters 50 DC to 865 MHz

Mini-Circuits

Description

Surface Mount Low Pass Filters 50Ω DC to 865 MHz .

📥 Download Datasheet

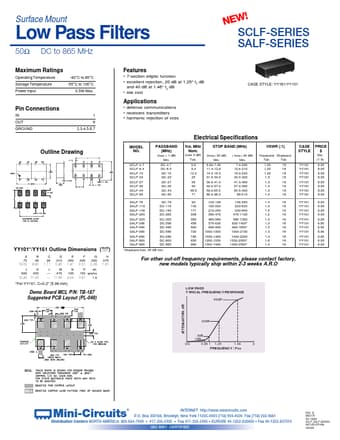

SALF-146 Datasheet Preview — This datasheet PDF includes multiple part numbers: SALF-146, SAL. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SALF-146, SAL
Manufacturer: Mini-Circuits
File Size: 177.80 KB
Datasheet: SAL-FSE.pdf
Description: Low Pass Filters 50 DC to 865 MHz
Note: This datasheet PDF includes multiple part numbers: SALF-146, SAL.
Please refer to the document for exact specifications by model.

Features

* -40°C to 85°C -55°C to 100°C 0.5W Max. ! NEW SCLF-SERIES SALF-SERIES Maximum Ratings Operating Temperature Storage Temperature Power Input
* 7-section elliptic function
* excellent rejection, 20 dB at 1.25
* f3 dB and 40 dB at 1.46
* f3 dB
* low cost CASE STYLE: YY

Applications

* Pin Connections IN OUT GROUND 1 8 2,3,4,5,6,7
* defense communications
* receivers transmitters
* harmonic rejection of vcos Electrical Specifications Outline Drawing MODEL NO. PASSBAND (MHz) (loss < 1 dB) Min. SCLF-4.7 SCLF-8.4 SCLF-10 SCLF-23 SCLF-27 SCLF-36 SCLF-44 SCLF-
