SBL-1+ Frequency Mixer

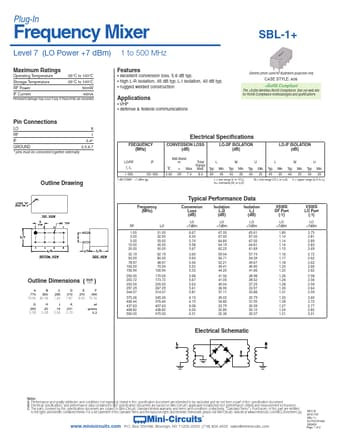

Plug-In Frequency Mixer Level 7 (LO Power +7 dBm) 1 to 500 MHz SBL-1+ Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power 50mW IF Current 40mA Permanent damage may occur if any of these limits are exceeded. Pin Connections LO 8 RF 1 IF 3,4^ GROUND 2,5,6,7 ^ pins must be connected together externally Outline Drawing Outline Dimensions ( inch mm ) A B C D E F .770 .800 .285 .310 .370 .400 19.56 20.32 7.24 7.87 9.40 10.1.

SBL-1+ Features

* excellent conversion loss, 5.6 dB typ.

* high L-R isolation, 45 dB typ. L-I isolation, 40 dB typ.

* rugged welded construction Applications

* VHF

* defense & federal communications Generic photo used for illustration purposes only CASE STYLE: A06 +RoHS Comp

SBL-1_Mini-Circuits.pdf

SBL-1+ Datasheet Preview — This datasheet PDF includes multiple part numbers: SBL-1+, SBL-1_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBL-1+, SBL-1_Mini

Manufacturer:

Mini-Circuits

File Size:

224.21 KB

Description:

Frequency mixer.

Note:

This datasheet PDF includes multiple part numbers: SBL-1+, SBL-1_Mini.
Please refer to the document for exact specifications by model.
