SBTC-2-10, SBTC-2-10_Mini, Power Splitter/Combiners 2 Way-0 50 5 to 1000 MHz

Surface Mount Power Splitter/Combiners 2 Way-0° 50Ω Maximum Ratings Operating Temperature Storage Temperature Power Input (as a splitter) Internal Di.

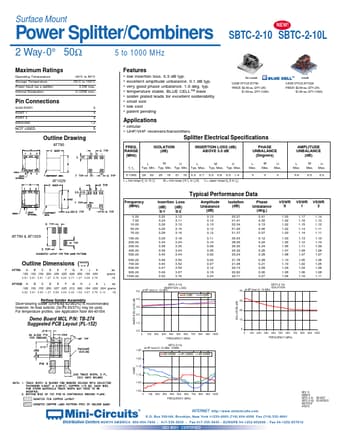

datasheet Preview Page 1 from Datasheet4u.com

SBTC-2-10_Mini-Circuits.pdf

SBTC-2-10 Datasheet Preview — This datasheet PDF includes multiple part numbers: SBTC-2-10, SBTC-2-10_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBTC-2-10, SBTC-2-10_Mini

Manufacturer:

Mini-Circuits

File Size:

97.50 KB

Description:

Power Splitter/Combiners 2 Way-0 50 5 to 1000 MHz

Note:

This datasheet PDF includes multiple part numbers: SBTC-2-10, SBTC-2-10_Mini.
Please refer to the document for exact specifications by model.

Features

* low insertion loss, 0.3 dB typ. excellent amplitude unbalance, 0.1 dB typ. very good phase unbalance, 1.0 deg. typ. temperature stable, BLUE CELL™ base solder plated leads for excellent solderability small size low cost

Applications

* cellular
* UHF/VHF receivers/transmitters NOT USED 5 Outline Drawing AT790 FREQ. RANGE (MHz) fL-fU 5-1000 Splitter Electrical Specifications ISOLATION (dB) INSERTION LOSS (dB) ABOVE 3.0 dB M U Typ. Max. Typ. Max. 0.3 0.8 0.5 1.4 PHASE UNBALANCE (Degrees) L Max. 3 M Max. 3 U Ma
