SDP-2R15+ Diplexer

Surface Mount Diplexer 50Ω DC to 2150 MHz (DC-800, 1500-2150 MHz) The Big Deal Low insertion loss High Rejection Miniature shielded package SDP-2R15+ CASE STYLE: HU1186 Product Overview SDP-2R15+ is a low-pass + high-pass combination device. Low pass port is designed for DC to 800 MHz and high pass port is designed for 1500 to 2150 MHz. This diplexer can be used in SATCOM, navigation, point to point radio and vehicle tracking system and miltiband radio syst.

SDP-2R15+ Features

* Feature Low passband insertion loss Excellent stopband rejection Shielded case Advantages Suitable for high performance application Spurious rejection and avoids using additional filters Reduced interference with the surrounding components. Mini-Circuits® ISO 9001 ISO 14001 AS 9100 CERTIFIED P.O.

SDP-2R15+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: SDP-2R15+, SDP-2R15+-Mini. Please refer to the document for exact specifications by model.

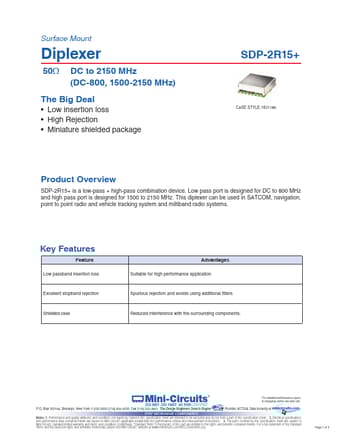

SDP-2R15+ Datasheet Preview Page 2 SDP-2R15+ Datasheet Preview Page 3

Datasheet Details

Part number:

SDP-2R15+, SDP-2R15+-Mini

Manufacturer:

Mini-Circuits

File Size:

344.35 KB

Description:

Diplexer.

Note:

This datasheet PDF includes multiple part numbers: SDP-2R15+, SDP-2R15+-Mini.
Please refer to the document for exact specifications by model.
