SIM-14+ Frequency Mixer

Ceramic Surface Mount Frequency Mixer wide band Level 7 (LO Power +7 dBm) 3700 to 10000 MHz SIM-14+ Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 50mW For extended temperature range, consult factory. Permanent damage may occur if any of these limits are exceeded. Pin Connections LO RF IF GROUND 8 4 2 1,3,5,6,7 Outline Drawing PCB Metal Land Pattern Suggested Layout, Tolerance to be within±.002 Outline Dimensions ( inch mm ) A .

SIM-14+ Features

* wide bandwidth, 3700 to 10000 MHz

* low conversion loss, 6.7 dB typ.

* high L-R isolation, 38 dB typ.

* excellent IF BW, DC to 4000 MHz

* LTCC double balanced mixer

* tiny size, low profile, 0.08”

* useable as up and down converter

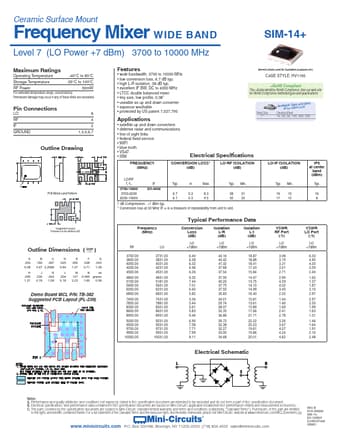

SIM-14+-Mini-Circuits.pdf

SIM-14+ Datasheet Preview — This datasheet PDF includes multiple part numbers: SIM-14+, SIM-14+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SIM-14+, SIM-14+-Mini

Manufacturer:

Mini-Circuits

File Size:

424.84 KB

Description:

Frequency mixer.

Note:

This datasheet PDF includes multiple part numbers: SIM-14+, SIM-14+-Mini.
Please refer to the document for exact specifications by model.
