SYK-2R, SYK-2R_Mini, Frequency Multiplier

X2 Frequency Multiplier 50Ω Output 20 to 2000 MHz SYK-2R+ SYK-2R Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C t.

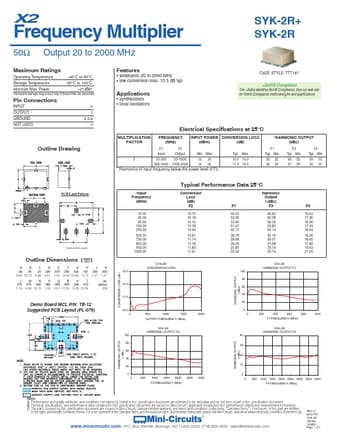

datasheet Preview Page 1 from Datasheet4u.com

SYK-2R_Mini-Circuits.pdf

SYK-2R Datasheet Preview — This datasheet PDF includes multiple part numbers: SYK-2R, SYK-2R_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SYK-2R, SYK-2R_Mini

Manufacturer:

Mini-Circuits

File Size:

262.98 KB

Description:

Frequency Multiplier

Note:

This datasheet PDF includes multiple part numbers: SYK-2R, SYK-2R_Mini.
Please refer to the document for exact specifications by model.

Features

* wideband, 20 to 2000 MHz

Applications

* synthesizers
* local oscillators CASE STYLE: TTT167 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications Electrical Specifications at 25°C MULTIPLICATION FACTOR FREQUENCY (MHz) INPUT POWER CONVERSION LOSS
