TC4-1TX+, TC4-1TX_Mini Datasheet - Mini-Circuits

TC4-1TX+ RF Transformer

top hat® SURFACE MOUNT RF Transformer 50Ω 0.5 to 300 MHz THE BIG DEAL y Wideband 0.5-300 MHz, usable over 0.2-450 MHz y Good return loss y Impedance matching y Plastic base with leads y Aqueous washable TC4-1TX+ Generic photo used for illustration purposes only CASE STYLE: AT1521 APPLICATIONS y CATV ELECTRICAL SPECIFICATIONS AT 25°C Parameter Frequency (MHz) Min. Typ. Impedance Ratio (secondary / primary) 4 Frequency Range 0.5 3.0 Insertion Loss 0.5-300 2.0 1.5-10.

TC4-1TX_Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: TC4-1TX+, TC4-1TX_Mini. Please refer to the document for exact specifications by model.

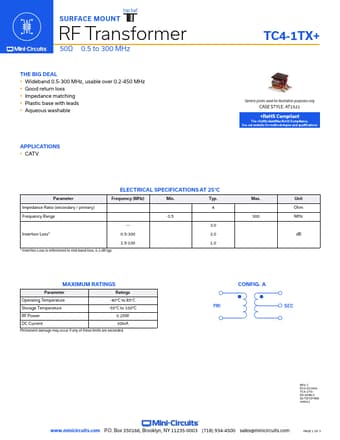

TC4-1TX+ Datasheet Preview Page 2 TC4-1TX+ Datasheet Preview Page 3

Datasheet Details

Part number:

TC4-1TX+, TC4-1TX_Mini

Manufacturer:

Mini-Circuits

File Size:

427.42 KB

Description:

Rf transformer.

Note:

This datasheet PDF includes multiple part numbers: TC4-1TX+, TC4-1TX_Mini.
Please refer to the document for exact specifications by model.
