TC8-1X+, TC8-1X_Mini, RF Transformer

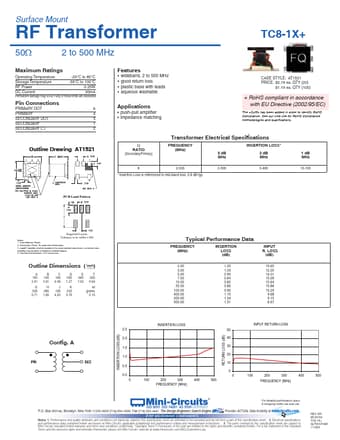

www.DataSheet.co.kr Surface Mount 50Ω Operating Temperature Storage Temperature RF Power DC Current RF Transformer 2 to 500 MHz .

datasheet Preview Page 1 from Datasheet4u.com

TC8-1X_Mini-Circuits.pdf

TC8-1X+ Datasheet Preview — This datasheet PDF includes multiple part numbers: TC8-1X+, TC8-1X_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TC8-1X+, TC8-1X_Mini

Manufacturer:

Mini-Circuits

File Size:

381.16 KB

Description:

RF Transformer

Note:

This datasheet PDF includes multiple part numbers: TC8-1X+, TC8-1X_Mini.
Please refer to the document for exact specifications by model.

Features

* -20°C to 85°C -55°C to 100°C 0.25W 30mA TC8-1X+ Maximum Ratings Permanent damage may occur if any of these limits are exceeded.
* wideband, 2 to 500 MHz
* good return loss
* plastic base with leads
* aqueous washable CASE STYLE: AT1521 PRICE: $2.19 ea. QTY

Applications

* + RoHS compliant in accordance with EU Directive (2002/95/EC) The +Suffix has been added in order to identify RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications.
* push-pull amplifier
* impedance matching Transformer Electrical Specifications
