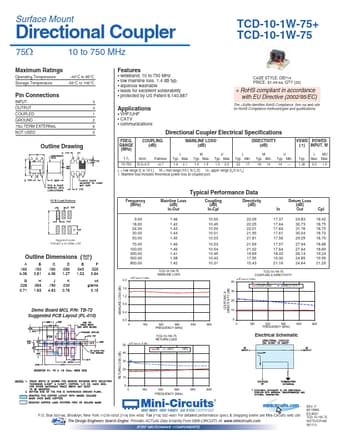

TCD-10-1W-75 Datasheet, Coupler, Mini-Circuits

TCD-10-1W-75 Features

• Coupler
• wideband, 10 to 750 MHz
• low mainline loss, 1.4 dB typ.
• aqueous washable
• leads for excellent solderability
• protected by US Patent 6,140,

PDF File Details

Part number:

TCD-10-1W-75

Manufacturer:

Mini-Circuits

File Size:

350.43kb

Download:

📄 Datasheet

Description:

Directional coupler.

TCD-10-1W-75 Application

• Applications
• VHF/UHF
• CATV
• communications Directional Coupler Electrical Specifications FREQ. RANGE (MHz) fL-fU 10-75
