VAT-30+, VAT-30+-Mini, SMA Fixed Attenuator

Coaxial SMA Fixed Attenuator 50Ω 0.5W 30dB DC to 6000 MHz VAT-30+ Maximum Ratings Operating Temperature -45°C to 100°C Storage Temperature -55°C.

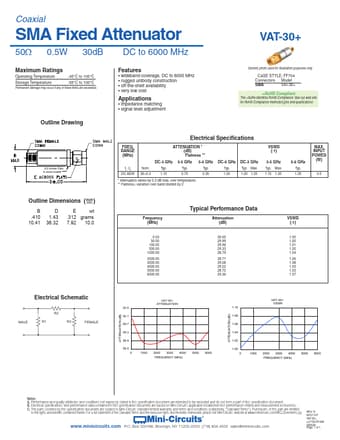

datasheet Preview Page 1 from Datasheet4u.com

VAT-30+-Mini-Circuits.pdf

VAT-30+ Datasheet Preview — This datasheet PDF includes multiple part numbers: VAT-30+, VAT-30+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VAT-30+, VAT-30+-Mini

Manufacturer:

Mini-Circuits

File Size:

182.95 KB

Description:

SMA Fixed Attenuator

Note:

This datasheet PDF includes multiple part numbers: VAT-30+, VAT-30+-Mini.
Please refer to the document for exact specifications by model.

Features

* wideband coverage, DC to 6000 MHz
* rugged unibody construction
* off-the-shelf availability

Applications

* impedance matching
* signal level adjustment Generic photo used for illustration purposes only CASE STYLE: FF704 Connectors Model SMA VAT-30+ +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications Electri
