VSW2-33-10W SPDT RF Switch

VSW2-33-10W+ is a high power reflective SPDT switch operates with positive control voltage while consuming, 20µA typical. It has been designed for very wideband operation of 50-3000 MHz for 50Ω systems. It is packaged in a tiny 2mm x 3mm x 1mm package and is rated MSL1 and class 1A for HBM. Simpli.

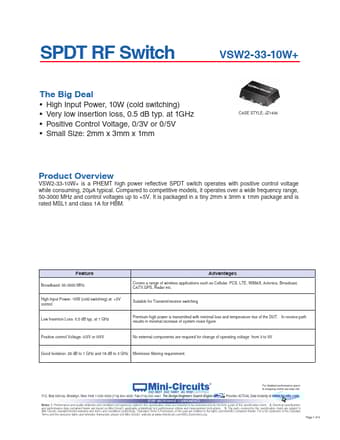

SPDT RF Switch The Big Deal High Input Power, 10W (cold switching) Very low insertion loss, 0.5 dB typ. at 1GHz Positive Control Voltage, 0/3V or 0/5V Small Size: 2mm x 3mm x 1mm VSW2-33-10W+ CASE STYLE: JZ1436 Product Overview VSW2-33-10W+ is a PHEMT high power reflective SPDT switch operates with positive control voltage while consuming, 20μA typical. Compared to competitive models, it operates over a wide frequency range, 50-3000 MHz and control.

VSW2-33-10W Features

* High Power, 10 W (cold switching)

* Good Isolation, 26 dB typ. at 1 GHz

* Low insertion loss, 0.5 dB typ. at 1 GHz

* High IP3, 56 dBm typ. at 1 GHz

* Small size, 3mm x 2mm x 0.89 mm

* Aqueous washable SPDT RF Switch 50Ω 50-3000 MHz VSW2-33-10W+ CA

VSW2-33-10W-Mini-Circuits.pdf

VSW2-33-10W Datasheet Preview — This datasheet PDF includes multiple part numbers: VSW2-33-10W, VSW2-33-10W-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VSW2-33-10W, VSW2-33-10W-Mini

Manufacturer:

Mini-Circuits

File Size:

230.88 KB

Description:

Spdt rf switch.

Note:

This datasheet PDF includes multiple part numbers: VSW2-33-10W, VSW2-33-10W-Mini.
Please refer to the document for exact specifications by model.
