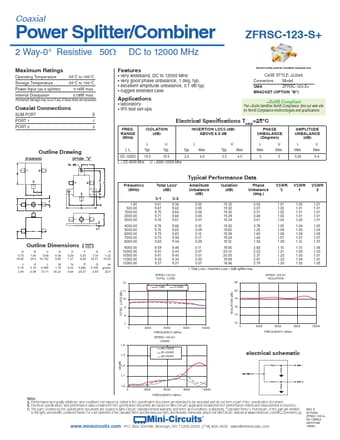

ZFRSC-123-S+ Datasheet, splitter/combiner equivalent, Mini-Circuits

ZFRSC-123-S+ Features

• Splitter/combiner
• very wideband, DC to 12000 MHz
• very good phase unbalance, 1 deg. typ.
• excellent amplitude unbalance, 0.1 dB typ.
• rugged shielded case Application

PDF File Details

Part number:

ZFRSC-123-S+

Manufacturer:

Mini-Circuits

File Size:

222.56kb

Download:

📄 Datasheet

Description:

Power splitter/combiner.

ZFRSC-123-S+ Application

• Applications
• laboratory
• IP3 test set-ups Generic photo used for illustration purposes only CASE STYLE: JJJ245 Connectors Mode
