MPW1024, MPW1xxx Single & Dual Output DC/DC Converters

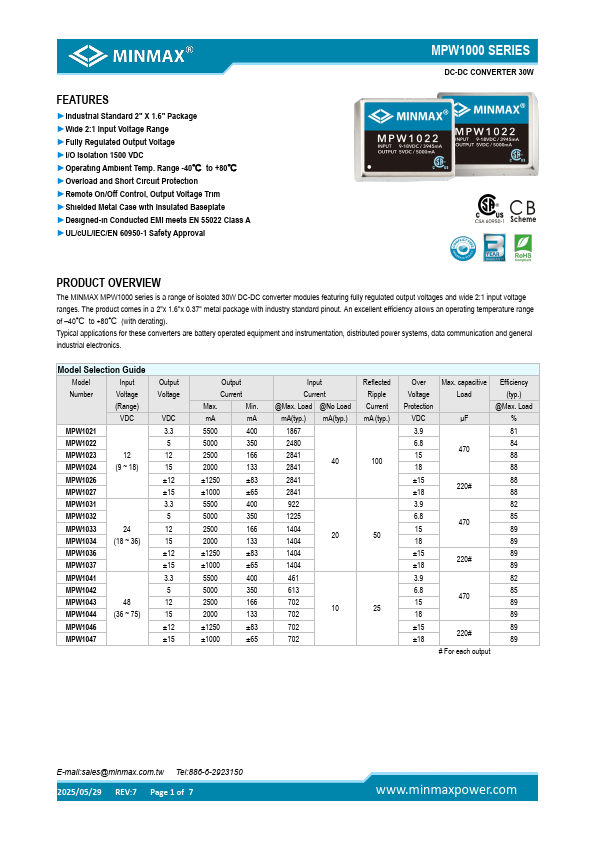

📥 Download Datasheet  Datasheet Preview Page 1

Description

.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MPW1024, MPW1xxx. Please refer to the document for exact specifications by model.

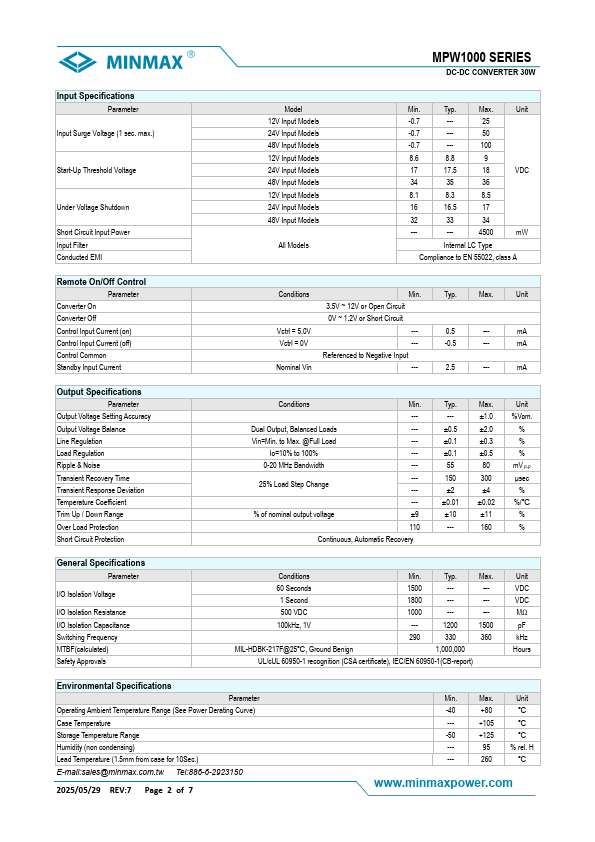

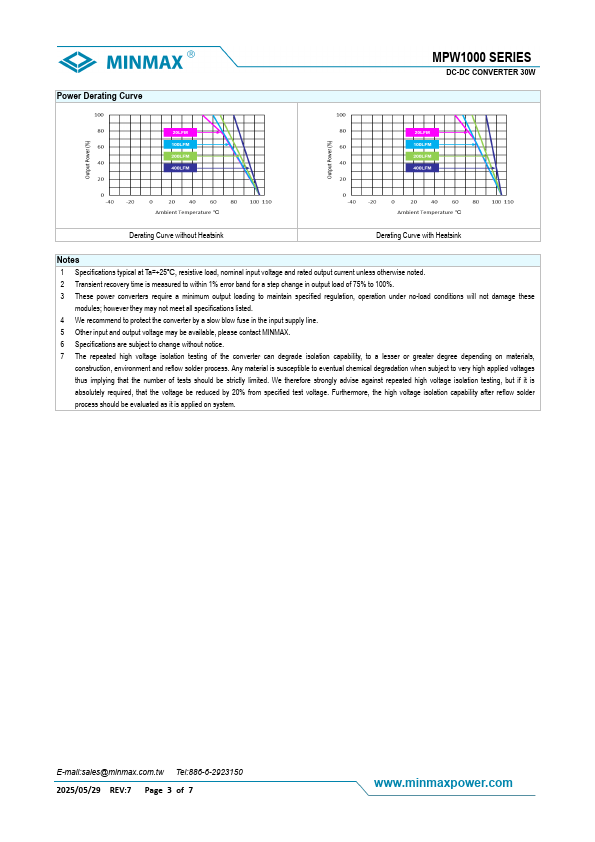

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MPW1024, MPW1xxx
Manufacturer
Minmax Technology
File Size
689.11 KB
Datasheet
MPW1xxx_MinmaxTechnology.pdf
Description
Single & Dual Output DC/DC Converters
Note
This datasheet PDF includes multiple part numbers: MPW1024, MPW1xxx.
Please refer to the document for exact specifications by model.

Features

* Industrial Standard 2" X 1.6" Package
* Wide 2:1 Input Voltage Range
* Fully Regulated Output Voltage
* I/O Isolation 1500 VDC
* Operating Ambient Temp. Range -40℃ to +80℃
* Overload and Short Circuit Protection
* Remote On/Off Control, Output Voltage Trim
* Shielded Metal

Applications

* for these converters are battery operated equipment and instrumentation, distributed power systems, data communication and general industrial electronics. Model Selection Guide Model Input Number Voltage (Range) VDC MPW1021 MPW1022 MPW1023 12 MPW1024 (9 ~ 18) MPW1026 MPW1027 MPW1031
