MKWI50-48S033, MKWI50-24S033 - DC/DC CONVERTER

📥 Download Datasheet

MKWI50-48S033 Datasheet Preview — This datasheet PDF includes multiple part numbers: MKWI50-48S033, MKWI50-24S033. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

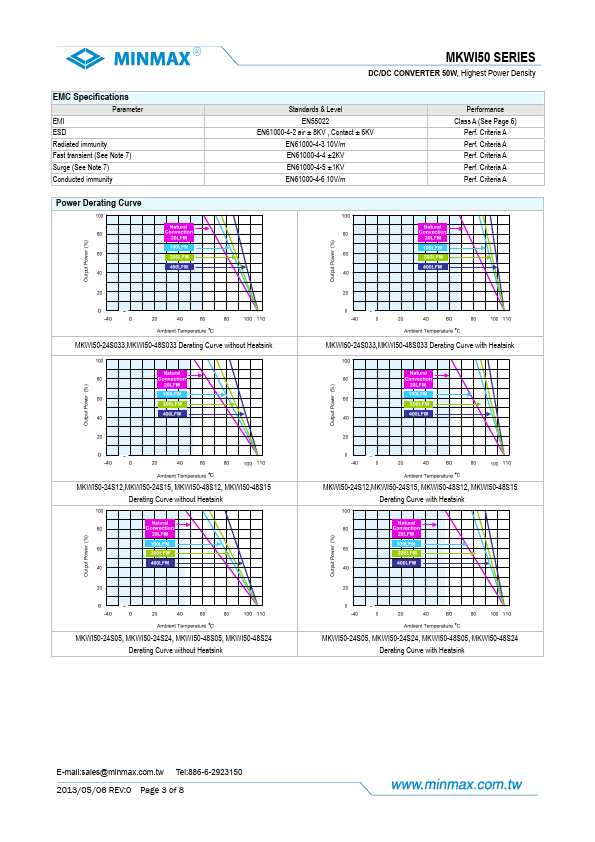

datasheet Preview Page 3

Datasheet Details

Part number	MKWI50-48S033, MKWI50-24S033
Manufacturer	Minmax
File Size	608.79 KB
Description	DC/DC CONVERTER
Datasheet	MKWI50-24S033-Minmax.pdf
Note	This datasheet PDF includes multiple part numbers: MKWI50-48S033, MKWI50-24S033. Please refer to the document for exact specifications by model.

MKWI50-48S033 Product details

Features

Smallest encapsulated 50W Converter.
Package Size 2.0”x 1.0”x 0.4”.
Ultra-Wide 4:1 lnput Range.
Excellent Efficiency up to 92%.
Output Current Up To 10A.
I/O-isolation Voltage 1500VDC.
Under- Voltage Shutdown.
Over Load and Over Voltage Protection.
Shielded Metal Case with Isolated Baseplate.
CSA/UL/IEC/EN 60950-1 (Approval pending).
Heatsink (Optional).
3 Years Product Warranty MKWI50 SERIES DC/DC.
