ACE9020 Datasheet - Mitel Networks Corporation

ACE9020 Receiver and Transmitter Interface

ACE9020 Receiver and Transmitter Interface Supersedes February 1997 edition, DS4287 - 4.1 ACE9020 is a VHF oscillator, up-converter and prescaler. It is used in an offset modulated transmit architecture where a UHF synthesiser makes the channel selection and a second synthesiser generates a fixed transmit offset. A VCO signal drives a buffer in ACE9020 to feed an onchip prescaler and transmit up-converter. The prescaler is a dual two-modulus divider and drives the main synthesiser input of the .

ACE9020_MitelNetworksCorporation.pdf

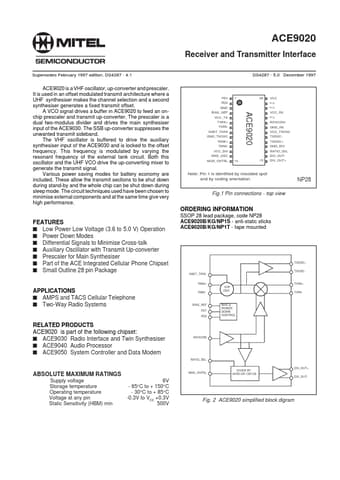

Preview of ACE9020 PDF
ACE9020 Datasheet Preview Page 2 ACE9020 Datasheet Preview Page 3

Datasheet Details

Part number:

ACE9020

Manufacturer:

Mitel Networks Corporation

File Size:

186.39 KB

Description:

Receiver and transmitter interface.
