PDSP1601AB0 - ALU and Barrel Shifter

PDSP1601AB0 Description

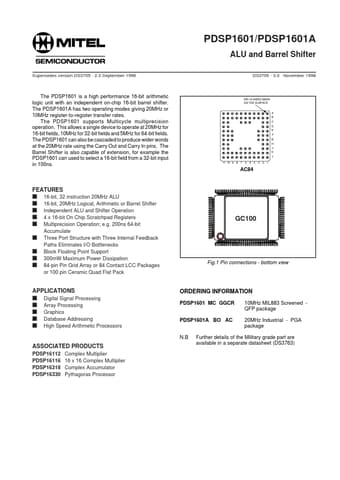

PDSP1601/PDSP1601A ALU and Barrel Shifter Supersedes version DS3705 - 2.3 September 1996 DS3705 - 3.0 November 1998 PDSP1601/PDSP1601A The PDSP1601 .
AC pin Function AC pin Function AC pin Function AC pin Function C6 A6 A5 B5 C5 A4 B4 A3 A2 B3 A1 B2 C2 B1 C1 D2 D1 E3 E2 E1 F1 IA4 MSB MSS B15 B14 B13.

PDSP1601AB0 Features

* s s s s s s s s s 16-bit, 32 instruction 20MHz ALU 16-bit, 20MHz Logical, Arithmetic or Barrel Shifter Independent ALU and Shifter Operation 4 x 16-bit On Chip Scratchpad Registers Multiprecision Operation; e. g. 200ns 64-bit Accumulate Three Port Structure with Three Internal Feedback Paths Elimin

PDSP1601AB0 Applications

* ORDERING INFORMATION PDSP1601 MC GGCR PDSP1601A BO AC N. B 10MHz MIL883 Screened QFP package 20MHz Industrial - PGA package s s s s s Digital Signal Processing Array Processing Graphics Database Addressing High Speed Arithmetic Processors ASSOCIATED PRODUCTS PDSP16112 PDSP16116 PDSP16318 PDSP1633
