VENUS-LKG - CDMA/AMPS Dual Band RF Receiver

Datasheet Summary

Description

VENUS-L is a dual integrated mixer circuit designed to meet the IS95 and J-STD-008 receive system specifications operating in the 900 MHz and 1900MHz bands.

Features

  • q Selectable dual RF input ports for 900MHz AMPS and 1900MHz CDMA bands. q Power Management Control Ordering Iinformation VENUS-L/KG/QP1S VENUS-L/KG/QP1T.

📥 Download Datasheet

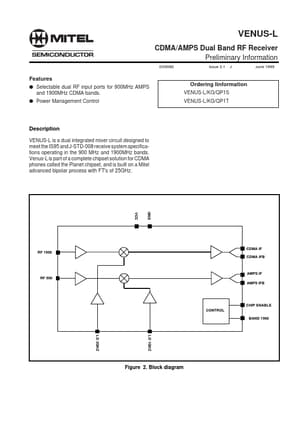

Datasheet preview – VENUS-LKG

Datasheet Details

Part number VENUS-LKG
Manufacturer Mitel Networks Corporation
File Size 86.10 KB
Description CDMA/AMPS Dual Band RF Receiver
Datasheet download datasheet VENUS-LKG Datasheet
Additional preview pages of the VENUS-LKG datasheet.

📁 Similar Datasheet

  • VENUS-L - CDMA/AMPS Dual Band and RF Receiver (Zarlink Semiconductor)
  • VENUS634FLPx - 65 Channel Low Power GPS Receiver (SkyTraq)
  • Venus634LP - 65 Channel Ultra Low Power GPS Receiver (SkyTra)
  • Venus634LPx - 65 Channel Ultra Low Power GPS Receiver (SkyTraq)
  • Venus634LPx-T - 65 Channel Timing Mode GPS Receiver (SkyTraq)
  • Venus638 - GPS Module (SkyTraq)
  • Venus638FLPx - GPS Receiver (SkyTraq)
  • Venus816 - Single-Chip GPS Receiver (SkyTraq)
  • VENUS822A - GPS / GNSS Baseband Processor (SkyTraq)
  • Venus828F - Multi-GNSS Receiver Module (SkyTraq)
Other Datasheets by Mitel Networks Corporation

Full PDF Text Transcription

Click to expand full text
VENUS-L CDMA/AMPS Dual Band RF Receiver Preliminary Information DS5082 Issue 2.1 J June 1999 Features q Selectable dual RF input ports for 900MHz AMPS and 1900MHz CDMA bands. q Power Management Control Ordering Iinformation VENUS-L/KG/QP1S VENUS-L/KG/QP1T Description VENUS-L is a dual integrated mixer circuit designed to meet the IS95 and J-STD-008 receive system specifications operating in the 900 MHz and 1900MHz bands. Venus-L is part of a complete chipset solution for CDMA phones called the Planet chipset, and is built on a Mitel advanced bipolar process with FT's of 25GHz. GND VCC CDMA IF RF 1900 CDMA IFB AMPS IF RF 900 AMPS IFB CHIP ENABLE CONTROL BAND 1900 LO 2GHZ Figure 2.
