MH88632 - Central Office Interface Circuit Preliminary Information

Mitel Networks

The MH88632 by Mitel Networks is a Central Office Interface Circuit Preliminary Information. Below is the official datasheet preview.

📥 Download Datasheet

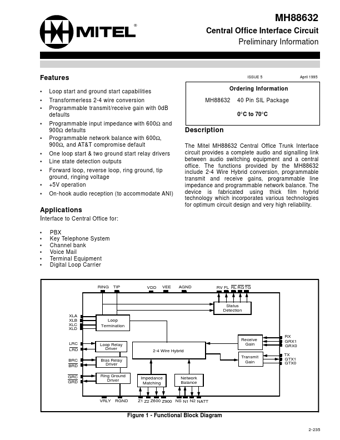

MH88632 Central Office Interface Circuit Preliminary Information by Mitel Networks - Datasheet Preview — Official preview page of the **MH88632** Central Office Interface Circuit Preliminary Information datasheet (Mitel Networks).

Datasheet Details

Part number	MH88632
Manufacturer	Mitel Networks
File Size	156.95 KB
Description	Central Office Interface Circuit Preliminary Information
Datasheet	MH88632_MitelNetworksCorporation.pdf
Additional preview pages of the MH88632 datasheet.

MH88632 Product details

Description

The Mitel MH88632 Central Office Trunk Interface circuit provides a complete audio and signalling link between audio switching equipment and a central office.

Features

Loop start and ground start capabilities Transformerless 2-4 wire conversion Programmable transmit/receive gain with 0dB defaults Programmable input impedance with 600 Ω and 900Ω defaults Programmable network balance with 600 Ω, 900Ω, and AT&T compromise default One loop start & two ground start relay drivers Line state detection outputs Forward loop, reverse loop, ring ground, tip ground, ringing.
