SP8713 - 1100MHz Very Low Current Three Modulus Divider
Datasheet Summary
Features
a power down facility for battery economy. The RF inputs are internally biased and should be capacitively coupled to the signal source. The output is designed to interface with CMOS synthesisers, such as the NJ88C50.
RF INPUT VCC.
SP8713IGMPAC- 1100MHz Very Low Current Three Modulus Divider
SP8713IGMPAS- 1100MHz Very Low Current Three Modulus Divider
SP8714- 2100MHz Very Low Current Multi-Modulus Divider
SP8714IGMPAC- 2100MHz Very Low Current Multi-Modulus Divider
SP8714IGMPAS- 2100MHz Very Low Current Multi-Modulus Divider
SP8715- 1100MHz Very Low Current Multi-Modulus Divider
SP8715IGMPAC- 1100MHz Very Low Current Multi-Modulus Divider
SP8715IGMPAS- 1100MHz Very Low Current Multi-Modulus Divider
Full PDF Text Transcription
Click to expand full text

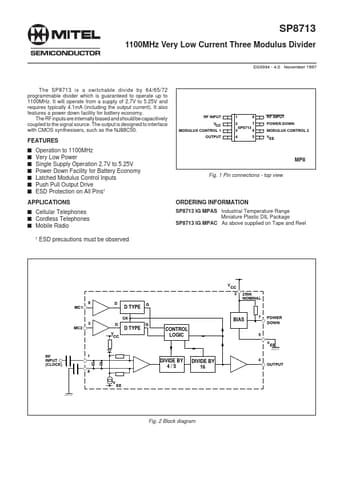

SP8713 SP8713
1100MHz Very Low Current Three Modulus Divider
DS3934 - 4.0 November 1997
The SP8713 is a switchable divide by 64/65/72 programmable divider which is guaranteed to operate up to 1100MHz. It will operate from a supply of 2.7V to 5.25V and requires typically 4.1mA (including the output current). It also features a power down facility for battery economy. The RF inputs are internally biased and should be capacitively coupled to the signal source. The output is designed to interface with CMOS synthesisers, such as the NJ88C50.
RF INPUT VCC MODULUS CONTROL 1 OUTPUT
1 2 3 4 SP8713
8 7 6 5
RF INPUT POWER DOWN MODULUS CONTROL 2 VEE
FEATURES s s s s s s s Operation to 1100MHz Very Low Power Single Supply Operation 2.7V to 5.
