CR6CM Datasheet - Mitsubishi Electric Semiconductor

CR6CM MEDIUM POWER USE NON-INSULATED TYPE/ GLASS PASSIVATION TYPE

MITSUBISHI SEMICONDUCTOR 〈THYRISTOR 〉 CR6CM MEDIUM POWER USE NON-INSULATED TYPE, GLASS PASSIVATION TYPE CR6CM OUTLINE DRAWING 10.5 MAX 3.2±0.2 Dimensions in mm 4.5 4 1.3 16 MAX ∗ 12.5 MIN 3.8 MAX TYPE NAME VOLTAGE CLASS 1.0 0.8 2.5 7.0 φ3.6±0.2 2.5 4.5 0.5 2.6 123 24 1 2 3 4 ∗ Measurement point of case temperature IT (AV) 6A VDRM 400V/600V IGT 10mA 3 1 CATHODE ANODE GATE ANODE TO-220 APPLICATION Switching mode power supply, ECR, regulator .

CR6CM_MitsubishiElectricSemiconductor.pdf

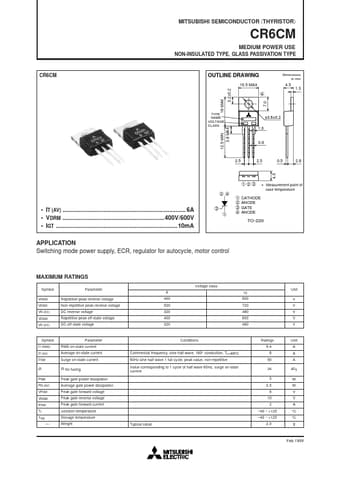

Preview of CR6CM PDF
CR6CM Datasheet Preview Page 2 CR6CM Datasheet Preview Page 3

Datasheet Details

Part number:

CR6CM

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

68.06 KB

Description:

Medium power use non-insulated type/ glass passivation type.
