CT40TMH-8 Datasheet - Mitsubishi Electric Semiconductor

CT40TMH-8 STROBE FLASHER USE

MITSUBISHI INSULATED GATE BIPOLAR TRANSISTOR CT40TMH-8 STROBE FLASHER USE CT40TMH-8 OUTLINE DRAWING 10.5MAX. 1.2 Dimensions in mm 2.8 5.2 5.0 17 φ 3.2 3.8MAX. 1.3MAX. 13.5MIN. 0.8 8.5 2.54 2.54 4.7MAX. 0.5 2.6 q w e w q q GATE w COLLECTOR e EMITTER ¡VCES 400V ¡ICM 200A e TO-220F APPLICATION Strobe Flasher. MAXIMUM RATINGS Symbol VCES VGES VGEM ICM Tj Tstg (Tc = 25°C) Parameter Collector-emitter voltage Gate-emitter voltage Peak gate-emitter voltage Collector current (.

CT40TMH-8_MitsubishiElectricSemiconductor.pdf

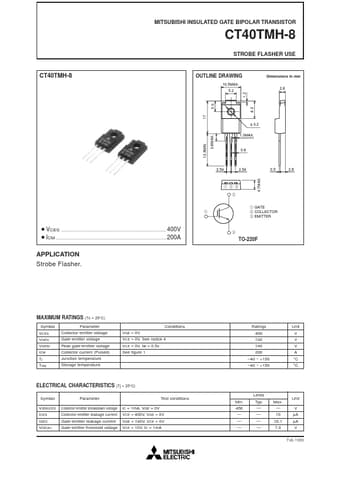

Preview of CT40TMH-8 PDF
CT40TMH-8 Datasheet Preview Page 2

Datasheet Details

Part number:

CT40TMH-8

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

32.35 KB

Description:

Strobe flasher use.
