PSS20S71F6 Datasheet - Mitsubishi Electric Semiconductor

PSS20S71F6 Dual-In-Line Package Intelligent Power Module

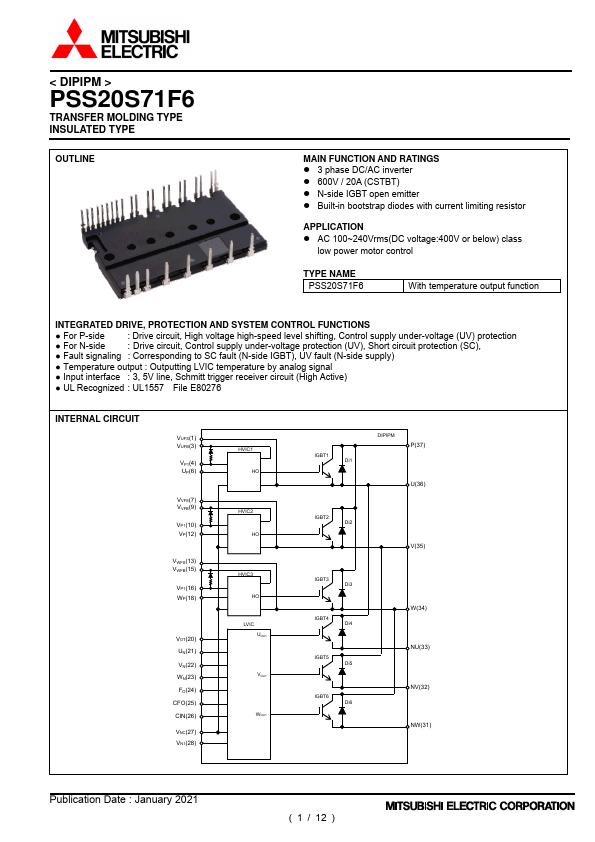

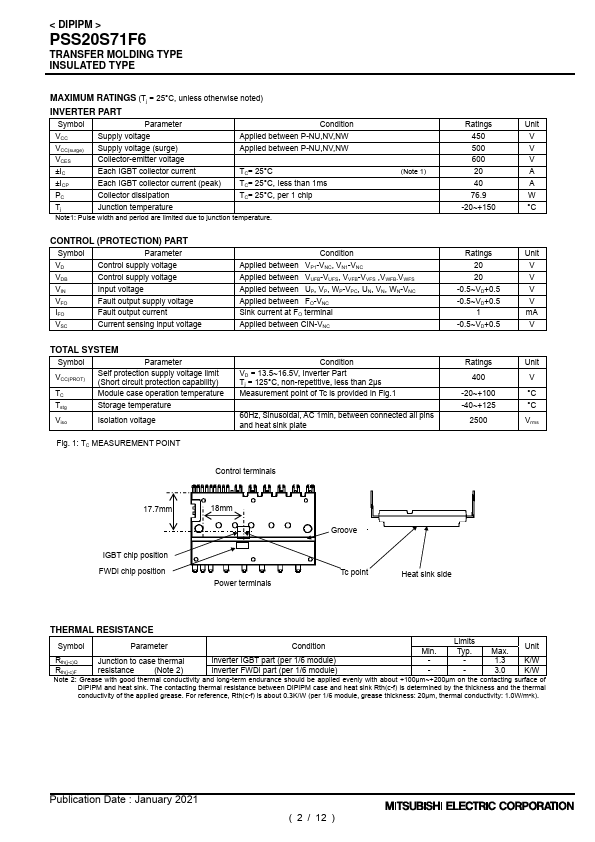

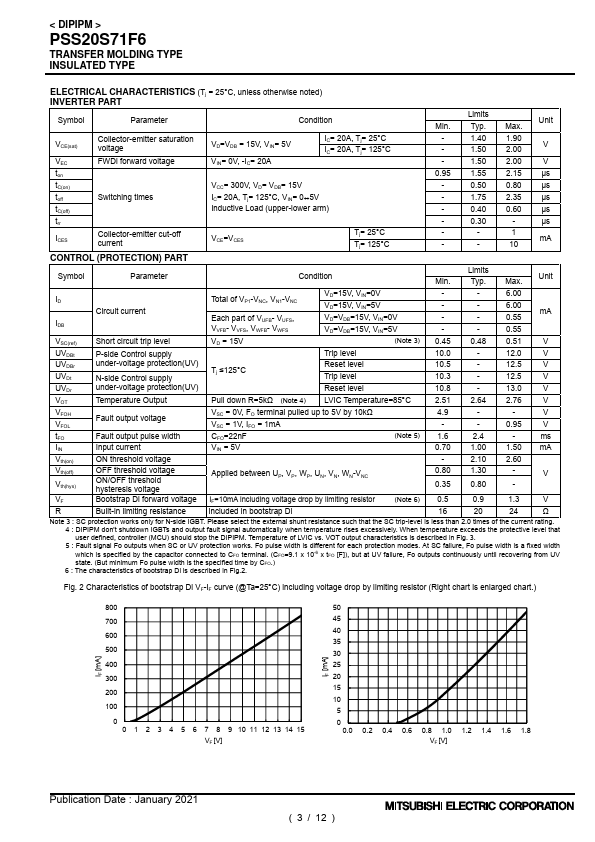

< Dual-In-Line Package Intelligent Power Module > PSS20S71F6 TRANSFER MOLDING TYPE INSULATED TYPE OUTLINE MAIN FUNCTION AND RATINGS 3 phase DC/AC inverter 600V / 20A (CSTBT) N-side IGBT open emitter Built-in bootstrap diodes with current limiting resistor APPLICATION AC 100~240Vrms(DC voltage:400V or below) class low power motor control TYPE NAME PSS20S71F6 With temperature output function INTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS For P-side.

PSS20S71F6 Datasheet (423.47 KB)

Preview of PSS20S71F6 PDF

Datasheet Details

Part number:

PSS20S71F6

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

423.47 KB

Description:

Dual-in-line package intelligent power module.
