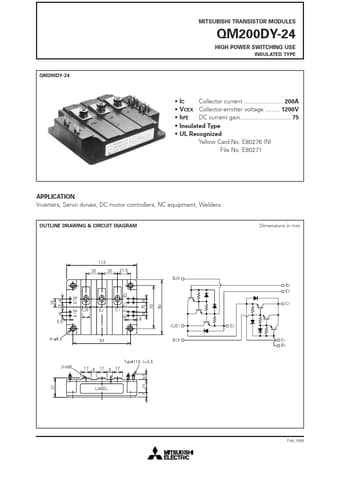

MITSUBISHI TRANSISTOR MODULES QM200DY-24 HIGH POWER SWITCHING USE INSULATED TYPE QM200DY-24 • • • • • IC Collector current ........................ 200A VCEX Collector-emitter voltage ......... 1200V hFE DC current gain............................... 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo dvives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 113 25 25 21.5 B2X B2 E2 6 15 6 6 15 6 14 B2 B1 E1 E2 70 C2E1 E2 C1 5.5 8 C2E1 B1X E2 E1 B1 4–φ6.5 93 Tab#110, t=0.5 3–M6 17 8 17 8 17 6.5 31 LABEL 7 21 90 B2X B1X C1 Feb.
