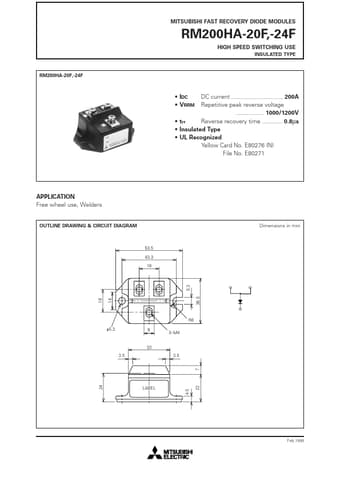

MITSUBISHI FAST RECOVERY DIODE MODULES
RM200HA-20F,-24F
HIGH SPEED SWITCHING USE
INSULATED TYPE
RM200HA-20F,-24F
DC current ................................ 200A Repetitive peak reverse voltage ................. 1000/1200V • trr Reverse recovery time ............. 0.8µs • Insulated Type • UL Recognized Yellow Card No. E80276 (N) File No. E80271
• IDC • VRRM
APPLICATION Free wheel use, Welders
OUTLINE DRAWING & CIRCUIT DIAGRAM
Dimensions in mm
53.5 43.3 16
5.3
R6 φ5.3 8 3–M4
33 3.5 3.5
7 24 4.5
LABEL
22
36.5
18
14
Feb.
