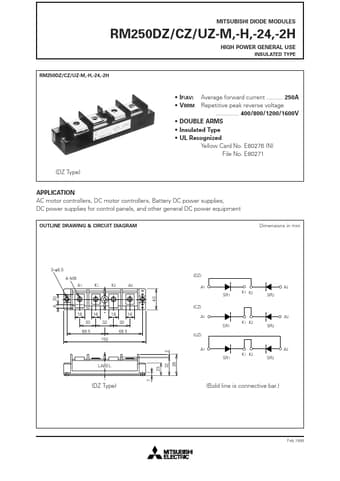

MITSUBISHI DIODE MODULES
RM250DZ/CZ/UZ-M,-H,-24,-2H
HIGH POWER GENERAL USE
INSULATED TYPE
RM250DZ/CZ/UZ-M,-H,-24,-2H
• IF(AV) • VRRM
Average forward current .......... 250A Repetitive peak reverse voltage .............. 400/800/1200/1600V • DOUBLE ARMS • Insulated Type • UL Recognized Yellow Card No. E80276 (N) File No. E80271
(DZ Type)
APPLICATION AC motor controllers, DC motor controllers, Battery DC power supplies, DC power supplies for control panels, and other general DC power equipment
OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm
3–φ6.5 4–M8 A1
6 20
(DZ) K1 K2 A2
40
A1 SR1 (CZ) K1 K2 SR2
A2
18 30 68.5
16 32
18 30 68.5 150
16
A1 SR1 (UZ) A1 SR1
23
A2 K1 K2 SR2
2
A2 K1 K2 SR2
LABEL
7
32
39
(DZ Type)
(Bold line is connective bar.)
Feb.
