RM300CA-9W Diode-Module

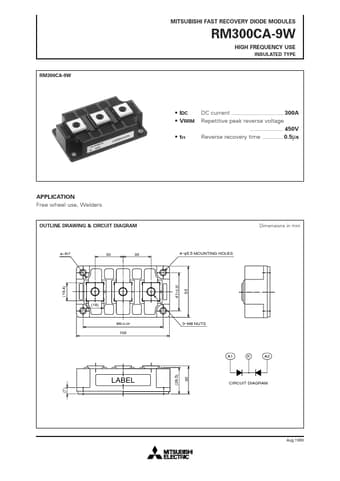

MITSUBISHI FAST RECOVERY DIODE MODULES RM300CA-9W HIGH FREQUENCY USE INSULATED TYPE RM300CA-9W IDC VRRM trr DC current 300A Repetitive peak reverse voltage 450V Reverse recovery time 0.5µs APPLICATION Free wheel use, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 4 R7 30 30 4 φ5.5 MOUNTING HOLES 41±0.25 (19.4) (18) 86±0.25 100 3 M8 NUTS 55 A1 A2 K A1 K A2 (28.5) LABEL (7) 30 CIRCUIT DIAGRAM Aug.1999 .
