RM30TB-H Datasheet - Mitsubishi Electric Semiconductor

RM30TB-H MEDIUM POWER GENERAL USE INSULATED TYPE

MITSUBISHI DIODE MODULES RM30TB-M,-H MEDIUM POWER GENERAL USE INSULATED TYPE RM30TB-M,-H DC output current 60A Repetitive peak reverse voltage 400/800V 3 phase bridge Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 IO VRRM APPLICATION AC motor controllers, DC motor controllers, Battery DC power supplies, DC power supplies for control panels, and other general DC power equipment OUTLINE DRAWING & CIRCUIT DIAGRAM Dime.

RM30TB-H_MitsubishiElectricSemiconductor.pdf

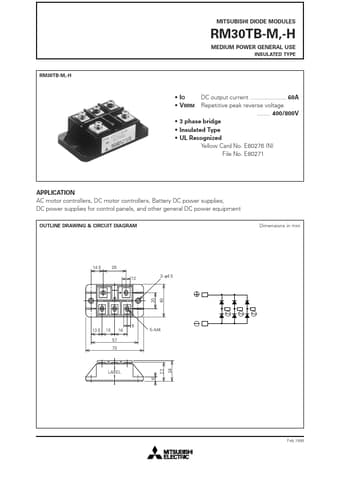

RM30TB-H Datasheet Preview — Preview of RM30TB-H PDF

Datasheet Details

Part number:

RM30TB-H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

46.37 KB

Description:

Medium power general use insulated type.
