RM60CZ-H - Diode Module

📥 Download Datasheet

Datasheet preview – RM60CZ-H

Datasheet Details

Part number RM60CZ-H
Manufacturer Mitsubishi Electric Semiconductor
File Size 43.99 KB
Description Diode Module
Datasheet download datasheet RM60CZ-H Datasheet
Additional preview pages of the RM60CZ-H datasheet.

📁 Similar Datasheet

  • RM6004R - Power Transformers (GROUP-TEK)
  • RM6005AR - N-Channel Enhancement Mode Power MOSFET (Rectron)
  • RM600DY-66S - Fast Recovery Diode Module (Powerex Power Semiconductors)
  • RM6 - POWER TRANSFORMER MODULES (FPE)
  • RM6 - xDSL POTs Splitter (Sumida Corporation)
  • RM6203 - High Performance Current Mode PWM Switching Power Supply Controller (Reactor)
  • RM6204 - Advanced overload and full load Flow protection switching technology power management (Reactor)
  • RM6221S - PWM controller (Reactor)
  • RM6222D - PWM controller (Reactor)
  • RM6222D - 12V 1A high performance current mode PWM controller (Reactor)
Other Datasheets by Mitsubishi Electric Semiconductor

Full PDF Text Transcription

Click to expand full text

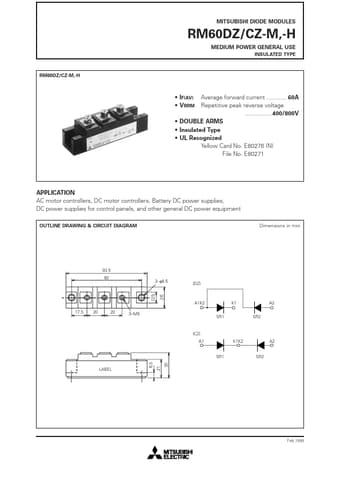

MITSUBISHI DIODE MODULES RM60DZ/CZ-M,-H MEDIUM POWER GENERAL USE INSULATED TYPE RM60DZ/CZ-M,-H Average forward current ............ 60A Repetitive peak reverse voltage ................ 400/800V • DOUBLE ARMS • Insulated Type • UL Recognized Yellow Card No. E80276 (N) File No. E80271 • IF(AV) • VRRM APPLICATION AC motor controllers, DC motor controllers, Battery DC power supplies, DC power supplies for control panels, and other general DC power equipment OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 93.5 80 2–φ6.5 12.5 26 (DZ) A1K2 17.5 20 20 3–M5 SR1 K1 SR2 A2 (CZ) A1 K1K2 A2 SR1 6.5 SR2 LABEL 21 30 Feb.
