M30620MCN Datasheet - Mitsubishi Electric

M30620MCN SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Description The M16C/62N group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high le.

M30620MCN Features

* Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 10K to 20K bytes

* Shortest instruction execution time 62.5ns (f(XIN)=16MHZ, VCC=3.0V to 3.6V) 142.9ns (f(XIN)=7MHZ, VCC=2.4V to 3.6V without software wait)

* Supply voltage 3.0V to 3.6V (f(XIN)=16MHZ, without sof

M30620MCN_MitsubishiElectric.pdf

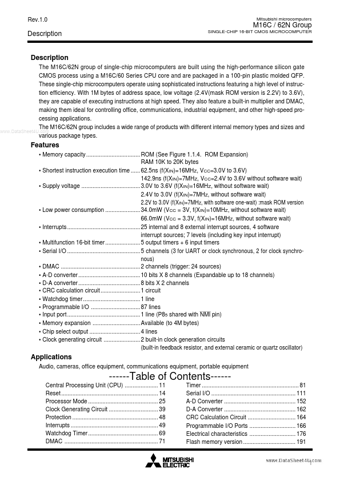

Preview of M30620MCN PDF
M30620MCN Datasheet Preview Page 2 M30620MCN Datasheet Preview Page 3

Datasheet Details

Part number:

M30620MCN

Manufacturer:

Mitsubishi Electric

File Size:

3.30 MB

Description:

Single-chip 16-bit cmos microcomputer.
