ML720J11S - (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES

This page provides the datasheet information for the ML720J11S, a member of the ML720AA11S (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES family.

Datasheet Summary

Description

ML7XX11series are DFB (Distributed Feedback) laser diodes emitting light beam around 1310nm.

They are well suited for light source in long distance digital transmission system.

They are hermetically sealed devices with the photo diode for optical output monitoring.

Features

  • Homogeneous grating (AR/HR facet coating) structure DFB.
  • Wide temperature range operation ( -40 to 85ºC ).
  • Low threshold current (typical 6mA).
  • High speed response (typical 0.1nsec).
  • φ5.6mm TO-CAN package.
  • Flat window cap, Ball lens cap, or Aspherical lens cap.

📥 Download Datasheet

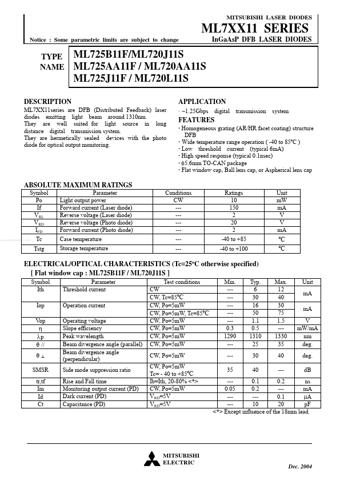

Datasheet preview – ML720J11S

Datasheet Details

Part number ML720J11S
Manufacturer Mitsubishi Electric
File Size 199.14 KB
Description (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES
Datasheet download datasheet ML720J11S Datasheet
Additional preview pages of the ML720J11S datasheet.

📁 Similar Datasheet

  • ML720J8S - InGaAsP-MQW-FP LASER DIODES (Mitsubishi)
  • ML7202-001 - 2-Channel Echo Canceler (LAPIS)
  • ML7204-001 - VoIP Codec (OKI Semiconductor)
  • ML7204-003 - VoIP CODEC (LAPIS)
  • ML720A1S-E22E - LASER DIODES (Roithner)
  • ML720K8S - InGaAsP-MQW-FP LASER DIODES (Mitsubishi)
  • ML725B16F - 2.5Gbps InGaAsP DFB LASER DIODE (Mitsubishi)
  • ML725B8F - InGaAsP-MQW-FP LASER DIODES (Mitsubishi)
  • ML725C8F - InGaAsP-MQW-FP LASER DIODES (Mitsubishi)
  • ML7000-01 - Single Rail CODEC (OKI electronic componets)
Other Datasheets by Mitsubishi Electric
  • ML720J16S - (ML7xx16) LASER DIODES 2.5Gbps InGaAsP DFB LASER DIODE
  • ML720J19S - (ML7xx19) LASER DIODES 1310nm InGaAsP FP LASER DIODES
  • ML720J34S - (ML7xx34) 2.5Gbps InGaAsP DFB LASER DIODE
  • ML720J45S - (ML7xx45) 1310nm InGaAsP FP LASER DIODES
  • ML720AA11S - (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES
  • ML720B8S - InGaAsP Laser Diodes
  • ML720D8S - InGaAsP Laser Diodes
  • ML720K19S - (ML7xx19) LASER DIODES 1310nm InGaAsP FP LASER DIODES

Full PDF Text Transcription

Click to expand full text
MITSUBISHI LASER DIODES ML7XX11 SERIES Notice : Some parametric limits are subject to change InGaAsP DFB LASER DIODES TYPE NAME ML725B11F/ML720J11S ML725AA11F / ML720AA11S ML725J11F / ML720L11S APPLICATION · ~1.25Gbps digital transmission system FEATURES · Homogeneous grating (AR/HR facet coating) structure DFB · Wide temperature range operation ( -40 to 85ºC ) · Low threshold current (typical 6mA) · High speed response (typical 0.1nsec) · φ5.6mm TO-CAN package · Flat window cap, Ball lens cap, or Aspherical lens cap DESCRIPTION ML7XX11series are DFB (Distributed Feedback) laser diodes emitting light beam around 1310nm. They are well suited for light source in long distance digital transmission system.
