ML725B19F, ML720J19S Datasheet - Mitsubishi Electric

ML725B19F, ML720J19S, (ML7xx19) LASER DIODES 1310nm InGaAsP FP LASER DIODES

MITSUBISHI LASER DIODES ML7xx19 SERIES Notice: Some parametric limits are subject to change.1310nm InGaAsP FP LASER DIODES TYPE NAME .
ML720J19S, ML720K19S, ML728C19S ML725B19F, ML725C19F FEATURES. 1310nm typical emission wavelength, FP-LDs. Wide temperature range ope.

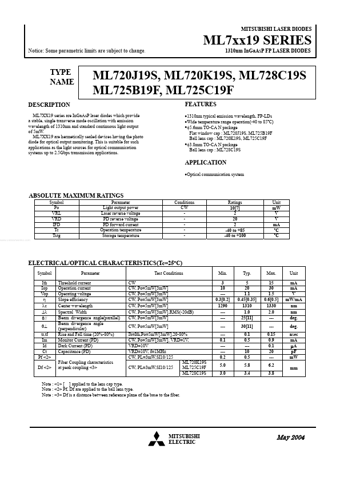

datasheet Preview Page 1 from Datasheet4u.com

ML720J19S_MitsubishiElectric.pdf

ML725B19F Datasheet Preview — This datasheet PDF includes multiple part numbers: ML725B19F, ML720J19S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ML725B19F, ML720J19S

Manufacturer:

Mitsubishi Electric

File Size:

226.45 KB

Description:

(ML7xx19) LASER DIODES 1310nm InGaAsP FP LASER DIODES

Note:

This datasheet PDF includes multiple part numbers: ML725B19F, ML720J19S.
Please refer to the document for exact specifications by model.

Features

* 1310nm typical emission wavelength, FP-LDs
* Wide temperature range operation(-40 to 85ºC)
* φ5.6mm TO-CA N package Flat window cap : ML720J19S, ML725B19F Ball lens cap : ML720K19S, ML725C19F
* φ3.8mm TO-CA N package Ball lens cap : ML728C19S ML7XX19 series are InGaAsP

Applications

* as the light sources for optical communication systems up to 2.5Gbps transmission applications. APPLICATION
* Optical communication system ABSOLUTE MAXIMUM RATINGS Symbol Po VRL VRD IFD Tc Tstg www. DataSheet4U. com Parameter Light output power Laser reverse voltage PD reverse voltage PD for
