ML925J16F

InGaAsP DFB LASER DIODES

Mitsubishi Electric

ML925J16F Features

* Homogeneous grating (AR/HR facet coating) structure DFB

* Wide temperature range operation ( 0 to 85ºC )

* Low threshold current (typical 8mA)

* High speed response (typical 0.1nsec)

* 8 wavelength with 20nm space at 1470 ~ 1610nm

* φ5.6mm TO-CAN package

* Flat window c

ML925J16F General Description

ML9XX11, ML9XX16 and ML9XX22 series are DFB (Distributed Feedback) laser diodes emitting light beam with emission wavelength of 1470 ~ 1610 nm. They are well suited for light source in long distance digital transmission application of coarse WDM. They are hermetically sealed devices with the photo d.

ML925J16F Datasheet (193.23 KB)

ML925J16F Datasheet Preview — Preview of ML925J16F PDF

Datasheet Details

Part number:

ML925J16F

Manufacturer:

Mitsubishi Electric

File Size:

193.23 KB

Description:

Ingaasp dfb laser diodes.

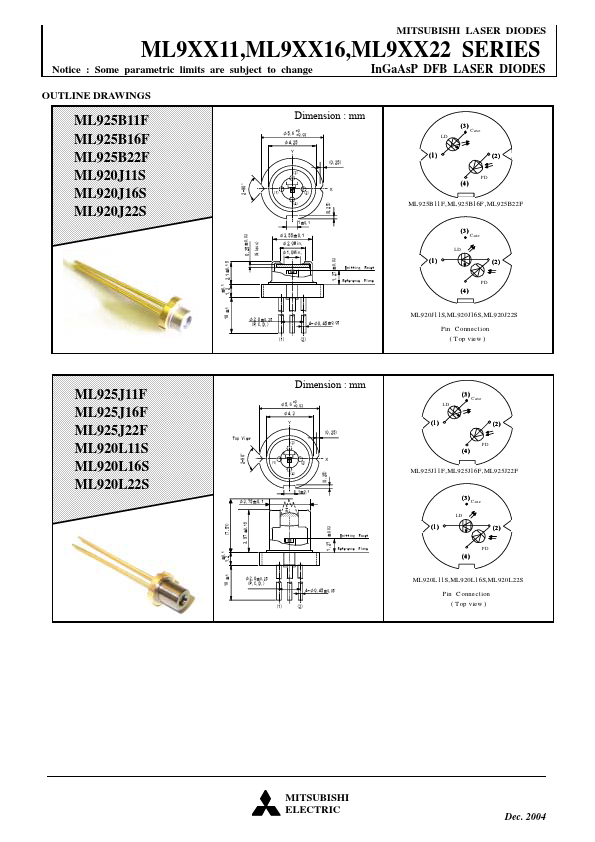

MITSUBISHI LASER DIODES ML9XX11,ML9XX16,ML9XX22 SERIES Notice : Some parametric limits are subject to change InGaAsP DFB LASER DIODES TYPE NAME ML.
