52795 Datasheet - Mitsubishi

52795 AV SWITCH with I2C BUS CONTROL

The M52795 is AV switch semiconductor integrated circuit with I2C bus control . This IC contains 2-channels of 4-input audio switches and 2channels of 4-input video switches. Each channel can be controled independently . The video switches contain amplifiers can be controled a gain of output 0dB or .

52795 Features

* Video and stereo sound switches in one package

* Wide frequency range ( video switch )DC~20MHz

* High separation ( video switch ) Crosstalk -60dB ( typ. ) at 1MHz

* Two types of packages are provided : SDIP with a lead pitch of 1.778mm ( M52795SP ) ; and SOP with a lead

52795 Datasheet (110.47 KB)

Preview of 52795 PDF

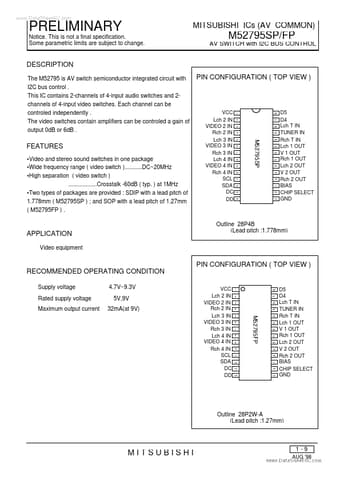

52795 Datasheet Preview Page 2 52795 Datasheet Preview Page 3

Datasheet Details

Part number:

52795

Manufacturer:

Mitsubishi

File Size:

110.47 KB

Description:

Av switch with i2c bus control.
