DA53-302M For Power Lines

SURGE ABSORBER DA53 Series Part number system 622 Vs DC Spark-over voltage (Vs) M DC Spark-over voltage tolerance 2 3 The first two digits are significant, and the third is number of zeros. 622 Ex.) 622 means: 62 102=6200v M 20 Dimensions 5.3 0.5 mm Unit mm 0.50 0.05 For Power Lines DA53 Series has a micro gap cut to an accuracy of several tens of microns in width for rapid response against induced lightning and electrostatic discharges. Allows performing the AC withstanding voltage tes.

DA53-302M Features

* Small size. (5.3mm Length 10mm)

* Allows performing the AC withstanding voltage test.

* Used to protect power supplies.

* Quick response for surge voltage, and low limiting voltage.

* Small capacitance and excellent insulation resistance.

* Stable for repeated discharge test con

DA53-302M Datasheet (53.08 KB)

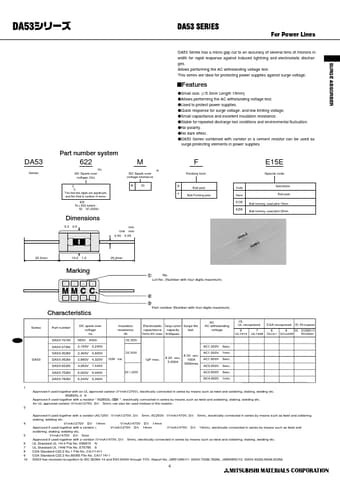

DA53-302M Datasheet Preview — Preview of DA53-302M PDF

Datasheet Details

Part number:

DA53-302M

Manufacturer:

Mitsubishi

File Size:

53.08 KB

Description:

For power lines.
