M38279EFHP, M38277M8MXXXFP, SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

MITSUBISHI MICROCOMPUTERS 3827 Group SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER .
The 3827 group is the 8-bit microcomputer based on the 740 family core technology.

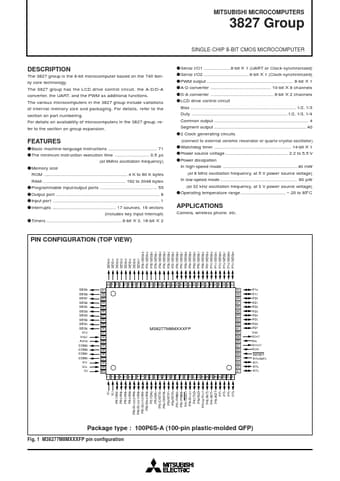

datasheet Preview Page 1 from Datasheet4u.com

M38277M8MXXXFP-Mitsubishi.pdf

M38279EFHP Datasheet Preview — This datasheet PDF includes multiple part numbers: M38279EFHP, M38277M8MXXXFP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M38279EFHP, M38277M8MXXXFP

Manufacturer:

Mitsubishi

File Size:

1.05 MB

Description:

SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Note:

This datasheet PDF includes multiple part numbers: M38279EFHP, M38277M8MXXXFP.
Please refer to the document for exact specifications by model.

Features

* qBasic machine-language instructions 71 qThe minimum instruction execution time 0.5 µs (at 8MHz oscillation frequency) qMemory size ROM 4 K to 60 K bytes RAM 192 to 2048 bytes qProgrammable input/output ports 55 qOutput port 8 qInput port 1 qInterrupts 17 sources, 16 vectors (includes key in

Applications

* Camera, wireless phone, etc. PIN CONFIGURATION (TOP VIEW) SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 P30/SEG18 P31/SEG19 P32/SEG20 P33/SEG21 P34/SEG22 P35/SEG23 P36/SEG24 P37/SEG25 P00/SEG26 P01/SEG27 P02/SEG28 P03/SEG29 P04/SEG30 P05/SEG31 P06/SEG32 P07/SEG33 P10/SEG34 P11/SEG35 P12/SEG36 P1
