M4016BP

QUADRUPLE BILATERAL SWITCH

M4016BP Features

* Typical ON resistance of 250n (at Voo = 15V)

* High off-state resistance 109n or greater (typical)

* Small variations in ON resistance between switches in the same package: 10n (typical, at Voo = 15V)

* Wide operating voltage range: Voo = 3 - 18V

* Wide oper

M4016BP Datasheet (232.61 KB)

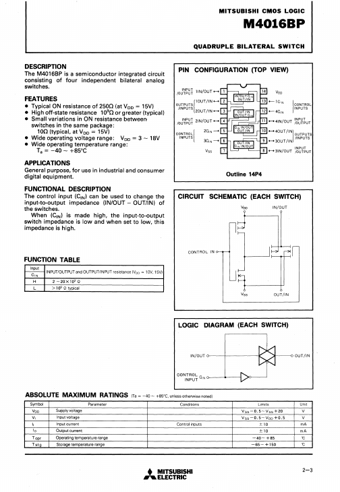

Preview of M4016BP PDF

Datasheet Details

Part number:

M4016BP

Manufacturer:

Mitsubishi

File Size:

232.61 KB

Description:

Quadruple bilateral switch.
