M5231L

VARIABLE OUTPUT VOLTAGE REGULATOR

M5231L Features

* High input voltage (V I =70V)

* Wide range of output voltages (Vo =3V-50V)

* Low output noise voltage (V NO =6tlVrms typ.)

* Built

* in current limiting and thermal shutdown circuits

* Capability of adjusting the output voltage rise time constant of the co

M5231L General Description

The M5231 L is a semiconductor integrated circuit which is designed for variable output voltage regulator and is housed in a small 5-pin SI L package. The input range 8 - 70V, and the output voltage range 350V can be optionally adjusted by the external resistors. In addi
* tion, by attaching powe.

M5231L Datasheet (264.19 KB)

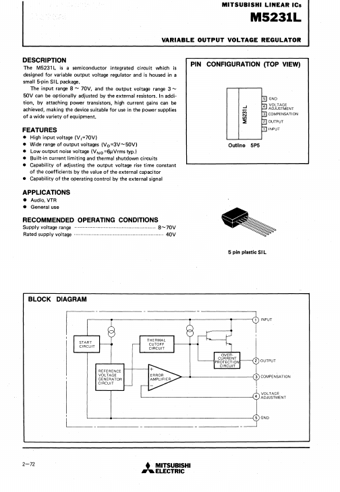

Preview of M5231L PDF

Datasheet Details

Part number:

M5231L

Manufacturer:

Mitsubishi

File Size:

264.19 KB

Description:

Variable output voltage regulator.
