M54525P Datasheet, Array, Mitsubishi

M54525P Features

  • Array
  • High output sustaining voltage to 50V
  • High output sink current to 500mA
  • Integral diodes for transient suppression
  • 24V PMOS compatible 'input

PDF File Details

Part number:

M54525P

Manufacturer:

Mitsubishi

File Size:

165.83kb

Download:

📄 Datasheet

Description:

7-unit 500ma darlington transistor array. The M54525P, 7-channel sink driver, consists of 14 NPN transistors connected to form high current gain driver pairs. FEATURES

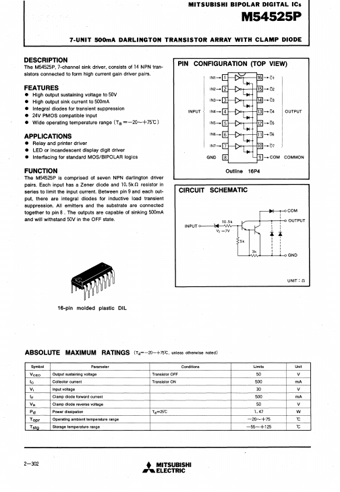

Datasheet Preview: M54525P 📥 Download PDF (165.83kb)
Page 2 of M54525P Page 3 of M54525P

M54525P Application

  • Applications
  • Relay and printer driver
  • LED or incandescent display digit driver
  • Interfacing for standard MOS/BIPOLAR lo
