M54576 Datasheet, Array, Mitsubishi

M54576 Features

• Array
• 30V output breakdown
• 30mA output sink current capability
• CMOS compatible input
• Low output saturation voltage
• Wide operating temperature

PDF File Details

Part number:

M54576

Manufacturer:

Mitsubishi

File Size:

104.97kb

Download:

📄 Datasheet

Description:

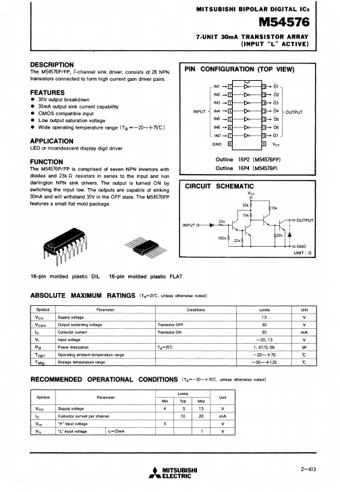

7-unit 30ma transistor array. The M54576P/FP, 7-channel sink driver, consists of 28 NPN transistors connected to form high current gain driver pairs. FEATURES

TAGS

M54576

Mitsubishi
