M54972P, M54972, Bi-CMOS 8-BIT SERIAL-INPUT LATCHED DRIVER

MITSUBISHI M54972P/FP Bi-CMOS 8-BIT SERIAL-INPUT LATCHED DRIVER .
The M54972 is a semiconductor integrated circuit consisting of 8 stages of CMOS shift registers and latches with serial inputs and serial or parallel.

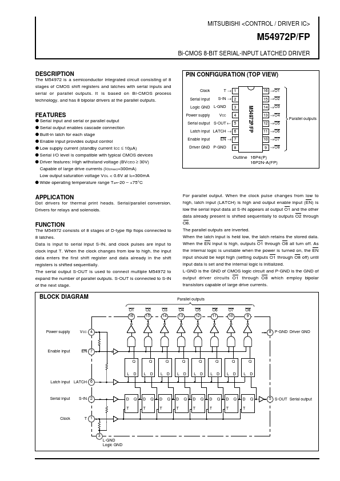

datasheet Preview Page 1 from Datasheet4u.com

M54972_MitsubishiElectricSemiconductor.pdf

M54972P Datasheet Preview — This datasheet PDF includes multiple part numbers: M54972P, M54972. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M54972P, M54972

Manufacturer:

Mitsubishi

File Size:

950.96 KB

Description:

Bi-CMOS 8-BIT SERIAL-INPUT LATCHED DRIVER

Note:

This datasheet PDF includes multiple part numbers: M54972P, M54972.
Please refer to the document for exact specifications by model.

Features

* q Serial input and serial or parallel output q Serial output enables cascade connection q Built-in latch for each stage q Enable input provides output control q Low supply current (standby current ICC ≤ 10µA) q Serial I/O level is compatible with typical CMOS devices q Driver features: High withstan
