M57788LR Datasheet - Mitsubishi

M57788LR 400-430MHz / 13.5V / 47W / FM MOBILE RADIO

MITSUBISHI RF POWER MODULE M57788LR 400-430MHz, 13.5V, 47W, FM MOBILE RADIO OUTLINE DRAWING 66±0.5 3±0.3 7.25±0.8 60±0.5 51.5±0.5 Dimensions in mm BLOCK DIAGRAM 2 3 4 1 5 6 2-R2±0.5 5 4 3 2 1 6 0.82±0.2 10.5±1 22.5±1 33.0±1 49.5±1 54.0±1 PIN: 1 Pin : RF INPUT 2 VCC1 : 1st. DC SUPPLY 3 VCC2 : 2nd. DC SUPPLY 4 VCC3 : 3nd. DC SUPPLY 5 PO : RF OUTPUT 6 GND: FIN H3R ABSOLUTE MAXIMUM RATINGS (Tc=25°C unless otherwise noted) Symbol VCC ICC Pin (max) PO (max) TC (OP) Tstg Parameter Supply .

M57788LR Datasheet (54.52 KB)

Preview of M57788LR PDF

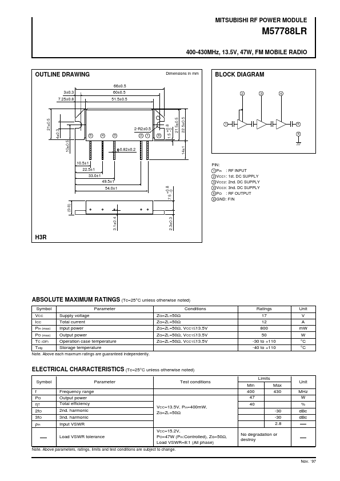

M57788LR Datasheet Preview Page 2 M57788LR Datasheet Preview Page 3

Datasheet Details

Part number:

M57788LR

Manufacturer:

Mitsubishi

File Size:

54.52 KB

Description:

400-430mhz / 13.5v / 47w / fm mobile radio.
