M5M27C128K-2

128K-Bit CMOS Erasable and Electrically Reprogrammable ROM

M5M27C128K-2 Features

* 163B4 word x B bit organization

* Access time M5M27C12BK-2 .. _ .. ___ 200ns (max.) M5M27C12BK ______ . __ 250ns (max.) M5M27C12BK-3 300ns (max.)

* Two line control OE, CE

* Low power current (Icc): Active 30mA (max.) Standby 1mA (max.)

* Single 5V power

M5M27C128K-2 General Description

The Mits.ubishi M5M27C12BK is a high-speed 131072-bit ultraviolet erasable and electrically reprogram mabie read only memory_ It is suitable for microprocessor programming applications where rapid turn-around is required_ The M5M27C12BK is fabricated by N-channel double polysilicon Memory gate and C.

M5M27C128K-2 Datasheet (405.33 KB)

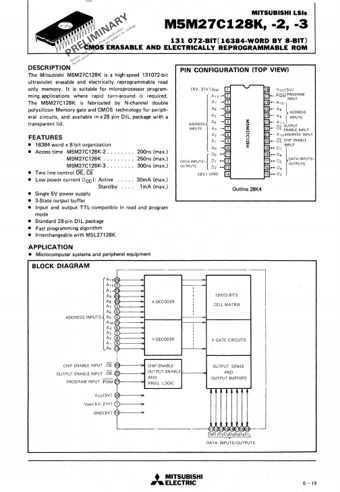

Preview of M5M27C128K-2 PDF

Datasheet Details

Part number:

M5M27C128K-2

Manufacturer:

Mitsubishi

File Size:

405.33 KB

Description:

128k-bit cmos erasable and electrically reprogrammable rom.
MITSUBISHI LSI. 'iF~;0,';;' ('1'" MSM27C128K, -2, -3 ,.;;~.'/;' 131 072-BIT( 16384-WORD BY 8-BIT) 'ERASABLE AND ELECTRICALLY REPROGRAMMABLE ROM .
