M5M29FT800VP - 8M-Bit BLOCK ERASE FLASH MEMORY

Mitsubishi

The M5M29FT800VP by Mitsubishi is a 8M-Bit BLOCK ERASE FLASH MEMORY. Below is the official datasheet preview.

📥 Download Datasheet

M5M29FT800VP 8M-Bit BLOCK ERASE FLASH MEMORY by Mitsubishi - Datasheet Preview — Official preview page of the **M5M29FT800VP** 8M-Bit BLOCK ERASE FLASH MEMORY datasheet (Mitsubishi).

Datasheet Details

Part number	M5M29FT800VP
Manufacturer	Mitsubishi
File Size	151.65 KB
Description	8M-Bit BLOCK ERASE FLASH MEMORY
Datasheet	M5M29FT800VP_MitsubishiElectricSemiconductor.pdf

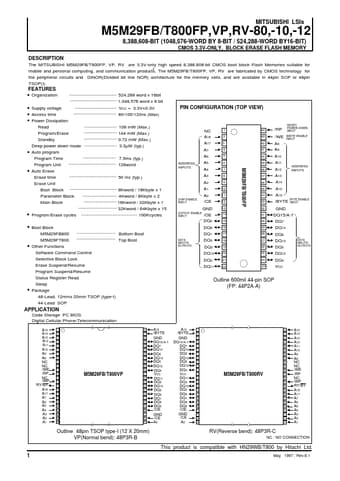

Additional preview pages of the M5M29FT800VP datasheet.

M5M29FT800VP Product details

Description

The MITSUBISHI M5M29FB/T800FP, VP, RV are 3.3V-only high speed 8,388,608-bit CMOS boot block Flash Memories suitable for mobile and personal computing, and communication products.

Features

524,288 word x 16bit 1,048,576 word x 8 bit VCC = 3.3V±0.3V Supply voltage 80/100/120ns (Max) Access time Organization Power Dissipation 108 mW (Max. ) Read 144 mW (Max. ) Program/Erase 0.72 mW (Max. ) Standby Deep power down mode 3.3µW (typ. ) Auto program 7.5ms (typ. ) Program Time 128word Program Unit Auto Erase 50 ms (typ. ) Erase time Erase Unit Boot Block 8Kword / 16Kbyte x 1 4Kword / 8Kbyte x 2 Parameter Block 16Kword / 32Kbyte x 1 Main Block 32Kword / 64Kbyte x 15 Program/Eras.
