M5M4256P-15, M5M4256P-12 Datasheet - Mitsubishi

M5M4256P-15, M5M4256P-12, 256K-Bit DRAM

MITSUBISHI LSls M5M4256P-12, -15, -20 262 144-BIT (262 144-WORD BY I-BIT) DYNAMIC RAM .
This is a fami Iy of 262 144-word by 1-bit dynamic RAMs, fabricated with the high performance N-channel silicon gate MOS process, and is ideal for lar.

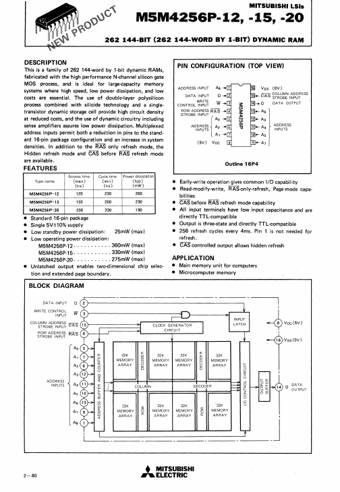

datasheet Preview Page 1 from Datasheet4u.com

M5M4256P-12-Mitsubishi.pdf

M5M4256P-15 Datasheet Preview — This datasheet PDF includes multiple part numbers: M5M4256P-15, M5M4256P-12. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M5M4256P-15, M5M4256P-12

Manufacturer:

Mitsubishi

File Size:

0.99 MB

Description:

256K-Bit DRAM

Note:

This datasheet PDF includes multiple part numbers: M5M4256P-15, M5M4256P-12.
Please refer to the document for exact specifications by model.

Features

* Type name Access time (max) (ns) Cycle time (min) (ns) Power diSSipation (typ) (mW) M5M4256P-12 120 230 260 M5M4256P-15 1
