M5M51016BTP-10VLL-I 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

Mitsubishi

Description

99Jul Jul ,1997 ,1997 M5M51016BTP,RT-10VL-I, -10VLL-I 1048576-BIT(65536-WORD 1048576-BIT(65536-WORD BY BY 16-BIT)CMOS 16-BIT)CMOS STATIC STATIC RAM R.
The M5M51016BTP, RT are a 1048576-bit CMOS static RAM organized as 65536 word by 16-bit which are fabricated using high-performance triple polysilicon.

📥 Download Datasheet

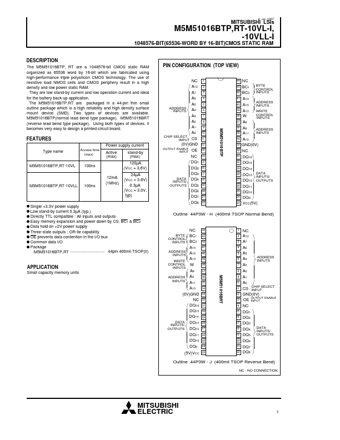

M5M51016BTP-10VLL-I Datasheet Preview — Preview of M5M51016BTP-10VLL-I PDF

Datasheet Specifications

Part number: M5M51016BTP-10VLL-I
Manufacturer: Mitsubishi
File Size: 76.21 KB
Datasheet: M5M51016BTP-10VLL-I_MitsubishiElectricSemiconductor.pdf
Description: 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

Features

* Power supply current Type name Access time (max) Active (max) stand-by (max) 120µA (VCC = 3.6V) M5M51016BTP,RT-10VL 100ns 12mA (1MHz) M5M51016BTP,RT-10VLL 100ns 24µA (VCC = 3.6V) 0.3µA (VCC = 3.0V, typ) Single +3.3V power supply Low stand-by current 0.3µA (typ. ) Directly TTL compatible : All
