M5M5165P-10L

64K-Bit CMOS Static RAM

M5M5165P-10L Features

* Type Access time (max) Power supply current Active (max) Stand-by (max) M5M5165P-70 M5M5165P-l0 M5M5165P-12 M5M5165P-15 M5M5165P-70L M5M5165P-l0L M5M5165P-12L M5M5165P-15L 70ns lOOns 120ns 150ns 70ns lOOns 120ns 150ns 50mA 2mA 100,uA

* Single +5V Power Supply

* Fully Static

M5M5165P-10L General Description

The M5M5165P is a 65,536-bit CMOS static RAM organized as 8,192 words by 8 bits which is fabricated using high-performance double polysilicon CMOS technology. The use of resistive load NMOS cells and CMOS periferals result in a high-density and low-power static RAM. It is ideal for the memory system.

M5M5165P-10L Datasheet (359.70 KB)

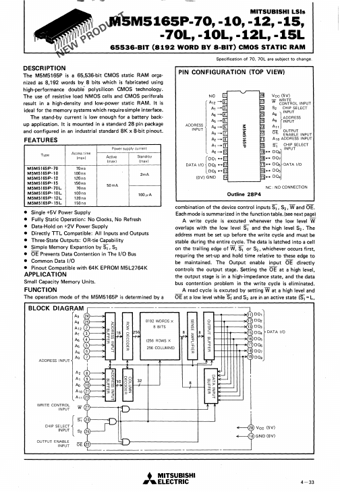

Preview of M5M5165P-10L PDF

Datasheet Details

Part number:

M5M5165P-10L

Manufacturer:

Mitsubishi

File Size:

359.70 KB

Description:

64k-bit cmos static ram.
