M5M5256FP-55XL-I Datasheet - Mitsubishi

M5M5256FP-55XL-I 262144-BIT (32768-WORD BY 8-BIT) CMOS STATIC RAM

The M5M5256DP,KP,FP,VP,RV is 262,144-bit CMOS static RAMs organized as 32,768-words by 8-bits which is fabricated using high-performance 3 polysilicon CMOS technology. The use of resistive load NMOS cells and CMOS periphery results in a high density and low power static RAM. Stand-by current is smal.

M5M5256FP-55XL-I Features

* 70LL-I, -45XL-I,-55XL-I,-70XL-I 262144-BIT (32768-WORD BY 8-BIT) CMOS STATIC RAM POWER DOWN CHARACTERISTICS (1) ELECTRICAL CHARACTERISTICS Symbol Vcc (PD) VI (/S) (Ta = -40~85°C, Vcc=5V±10%, unless otherwise noted) Parameter Power down supply voltage Chip select input /S Test conditions

M5M5256FP-55XL-I Datasheet (44.92 KB)

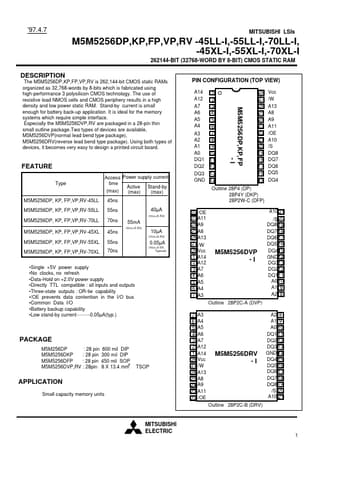

Preview of M5M5256FP-55XL-I PDF

Datasheet Details

Part number:

M5M5256FP-55XL-I

Manufacturer:

Mitsubishi

File Size:

44.92 KB

Description:

262144-bit (32768-word by 8-bit) cmos static ram.
